Feature

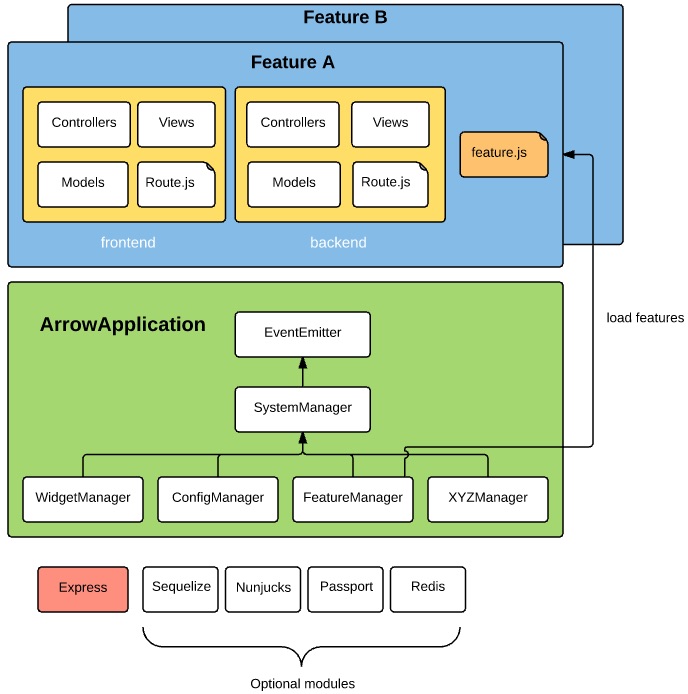

Feature represents one unit of feature in web application. A feature consists of Model, View, Controller, Route.
- Model: data structure and data object that is fetched from back end database. In early version, we support Postgresql. Later on we will support MongoDB, MySQL,...
- View: View template = HTML + Nunjucks syntax, CSS, JavaScript
- Controller: Javascript file contains handler functions for different HTTP requests
- Router: Direct HTTP request to appropriate handler functions in controller

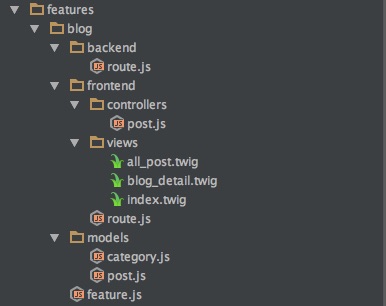

Folder structure of feature
Folder structure of a feature is governed by structure.js. In common web application, a feature may have more than one subfolders:
- frontend sub folder: It is customer facing part for end user.
- backend sub folder: It is back office operational part for administrator, operator.
A feature may have only frontend sub folder or backend subfolder or more than that. Below is extract of controller section in structure.js. There are sub folders backend and frontend. When you implement new feature, you may skip one of them but creating new sub folder different with backend and frontend will not be recognized when Arrowjs app parses.
Example of feature that have backend and frontend sub folders.
controller: [
{
path: {
name: "backend",
folder: "backend/controllers",
file: "*.js"
}
},
{
path: {
name: "frontend",
folder: "frontend/controllers",
file: "*.js"
}
}
]
Example of feature that has a single, direct sub folder named controllers
controller: [
{
path: {
folder: "controllers",
file: "*.js"
}
}
]
Create a feature manually
In booting process, Arrowjs web application will parse and load all features in folder features. Developer can create feature manually or use Yeoman generator to generate scaffold of feature.
To create a feature manually.
mkdir <name>
cd <name>
touch feature.js
feature.js is required configuration file for feature.
'use strict';
module.exports = {
name: "index" // if not exist, Arrowjs will use feature folder name instead
title: "Index Module", //display in feature management in back end
author: 'Tran Quoc Cuong',
version: '0.1.0',
description: "Hello Arrowjs",
permissions: [
{
name: 'index', //key of permission
title: t('m_users_backend_rule_index') //description of permission in localized language
},
{
name: 'create',
title: t('m_users_backend_rule_create')
},]
};
Create a controller inside a feature
In this example, we are going to create a controller sub folder inside a feature then create index.js. index.js contains functions that handles HTTP requests we need map in route.js
cd <feature name>
mkdir controllers
cd controllers
touch index.js
Below is example index.js that has one handler function responses back to browser "Hello Arrowjs"
module.exports = function (controller,component,application) {
controller.index = function (req,res) {
res.send("Hello Arrowjs");
};
}
Developer can access properties 5 parameters passed in:
- controller > controller object itself
- component > feature object that contains controller
- application > Arrowjs application object
- req > request object
- response > response object
Create a route inside a feature
If a feature contains several sub folder controllers such as frontend and backend then we need seperate route.js for each sub folder controller
At one URL path, we can map several HTTP verbs such as: post, get, delete, put. Example of route.js.
'use strict';
module.exports = function (component,application) {
return {
"/": {
get : {
handler: component.controllers.index
}
},
"/neworder": {
post : {
handler: component.controllers.newOrder
}
}
}
};
Create view template inside a feature
In fact, a view template is HTML file that include Nunjucks syntax. Each page layout needs one view template. Nunjucks allows to include, import and extend a view template.
If you use PHPStorm or WebStorm, you should use .twig file extension for view template then install twig plugin to highlight Nunjucks syntax.
Render HTML and response to browser in handler function
A common flow in MVC web application is :
- Browser sends a HTTP request to web application
- Using routes loaded in boot time, Web app maps this request to appropriate handler function
- Handler function may fetch or update data from or to model then render view
To render view you need to use either res.render or component.render.
For simplicity, just use res.render
module.exports = function (controller,component,application) {
controller.index = function (req,res) {
res.render("index.twig");
};
}
Use component.render when you want to use promise function
component.render("index"). then(functiont(html){
res.send(html)
})
To push data from controller to view:
res.render("index.twig", {title : "Hello ArrowJS"});
Create a model
Arrowjs uses Sequelize as Object Relation Mapping between SQL database to models. We, original developers of Arrojws, have been using Postgresql 9.4 intensively in several Arrowjs application. However you may use other SQL databases such as MySQL, MariaDB, SQLite and MSSQL. Please refer to Model definition in Sequelize to know how to define a model.
Example of User model with three fields: id, username and password:
var bcrypt = require('bcrypt');
module.exports = function (sequelize,Datatypes) {
var User = sequelize.define('user', {
id : {
type: Datatypes.INTEGER,
primaryKey : true,
autoIncrement : true
},
username: {
type: Datatypes.STRING,
unique: true
},
password: {
type: Datatypes.STRING,
},
}, {
freezeTableName : true,
hooks : {
beforeCreate: function (user, op, fn) {
if(user.password) {
bcrypt.hash(user.password,10, function (err, hash) {
if(err) throw err;
user.password = hash;
fn(null, user);
})
} else {
user.password = '';
fn(null, user);
}
}
}
})
User.sync();
return User
}
Get data from model
Please refer to section Querying of Sequelizejs for detail. Below are just some simple examples:
Find a record by ID
component.models.[model_name].findById(id)
Get all records in model
application.models.[model_name].findAll(condition)
